Commercial Heater Parts

• Propane use only
• Flow Capacity: 0 - 85,000BTU/Hr

• Inlet Pressure: 25 - 250PSIG

• Outlet Pressure: 11"W.C.

• Certification: CSA


• Tall conical complete burner, all 304SS
• 45000 BTU's
• Piezo striker.
• Control knob.
• Emmitter Screen double insulated.
• Main control valve.
• Pilot assembly.
• Diffuser plate.
• Made for a 2 1/2 " pole.
• Regulator not included.


• Burner emitter screen for square commercial heaters (HS-PC, HS-SS, HS-HG, Dayva or Hiland brand)
  • 9 7/8" diameter
  • 8" Tall
  • 3 threaded holes to attach reflector shield. 6 7/8" apart
  • Stainless Steel.
  • 4 threaded mounting holes for attaching to valve body and 4 for the shield.
  • Hardware not included.
  • Pilot view hole.

• Aluminum reflector shield
• Solid 1 Piece Shield
• Hardware to assemble shield.
• 36" diameter
• 3 holes for mounting 6 7/8" from hole to hole to attach to the main burner screen.

• Aluminum reflector shield
• 5 Piece Shield to be assembled.
• Hardware to assemble shield.
• 34 " Square
• 4 holes for mounting 9" from hole to hole to attach to the main burner screen.

• Main control valve with female outlet for square commercial heater.
• Thermocouple, pilot, and main diffuser ports.
• Pilot and variable control settings.
• Please see enlarged detail pictures to match your current model and style.

**Manufacturer part number: AH902D01 Manufacturer name: Laite

• Mechanical style anti tilt switch.
• 2009 heaters or newer.
• For safety, if heater tips or falls over, this device will automatically shut your heater off.
• Can be used in Garden Treasures heater model 48650, 48221, 328154 and 328157 sold at Lowes in 2010 to 2015.
• Connected through your thermocouple leads.

*** MOST COMMON APPLICATION***

Will fit models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, HLDS01-models, HLDS032-models, PH08 and PH01 models.

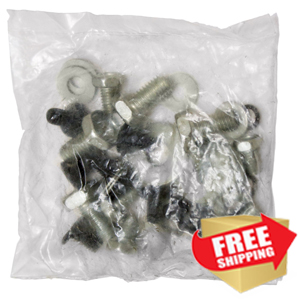

• Complete master bolt set for square commercial patio heater
• Fits models: HS-SS, HS-PC, HS-HG

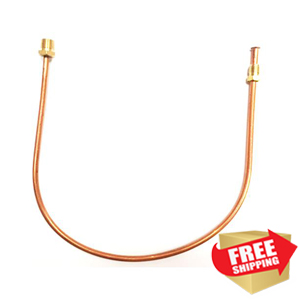

• Pilot feed tube.
• Connects from the main valve to supply the pilot flame.
• Orifice included.
• 15" long

• Pilot feed tube with hex orifice.
• Connects from the main valve to supply the pilot flame.
• Orifice included.
• Used with single pilot tabletop heaters, some square and triangle glass tube heaters.
• 14 5/16" long.

• Pilot feed tube for Tabletop Heaters or Square Commercial Heaters.
• Connects from the main valve to supply the pilot flame assembly.
• Orifice included.
• 15.5" long.

• Pilot feed tube with round orifice.
• Connects from the main valve to supply the pilot flame.
• Orifice included.
• 15.5" long.
• Used with single pilot tabletop heaters, most square and triangle glass tube heaters.

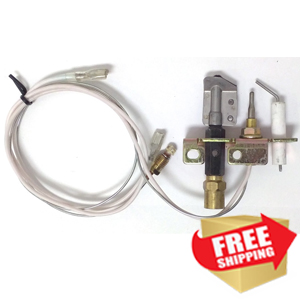

• New Pilot assembly comes with thermocouple, venturi tube, igniter stem, and igniter wire.
• Application for Tall Square Commercial Heater
• Igniter wire and thermocouple wire's are a total of 22" long
• Pilot feed tube is not included.

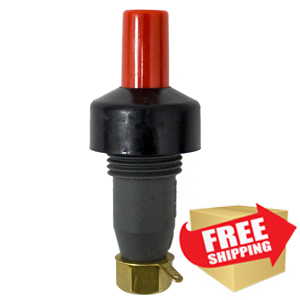

• Manual piezo striker switch
• Sends a spark to the igniter wire for ignition of the burner.
• ***Does not include igniter wire***
• For round commercial heaters HLB-2400-BRZ, HLB-2400-BLK, HLB-2650-SS

• Electric igniter takes a AAA battery.
• Sends a spark to the pilot for ignition.
• For 2010 and newer heaters.
  *** Does not include striker wire***

Will fit Garden Treasures heater model 328157 or 48650 sold at Lowes in 2010 to 2015.

• Electric igniter takes a AA battery.
• Sends a spark to the pilot for ignition.
• For heaters made in 2009 or earlier.
• *** Does not include striker wire***

**Will fit most tall and tabletop glass tube heaters made prior to 2009.

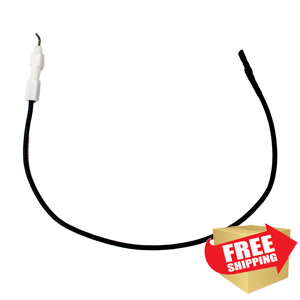

• Connects to piezoelectric striker switch.
• Conduit for a spark to the tip of the igniter from piezoelectric switch.
• 21" long.

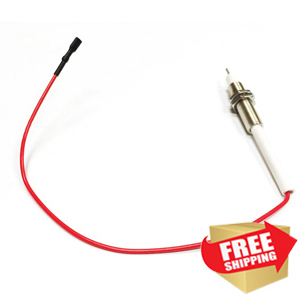

• Igniter wire.
• Sends a spark to the tip of the igniter wire for ignition of the pilot flame.
• Igniter wire is a total of 18" long.
• For square commercial heaters HS-SS, HS-HG, HS-PC

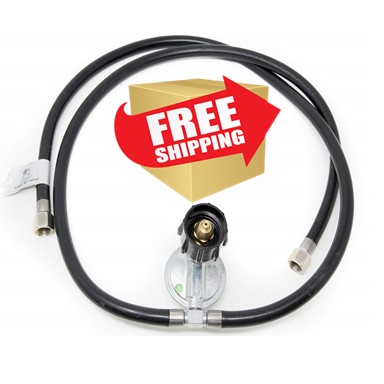

• Pressure regulator.
• Regulates your propane for an adequate burn.
• Used with all square commercial and glass tube heaters.
• Female end has 14" long hose.
• Female coupler attaches to propane cylinder.
• 250 PSI and 11 W.C.

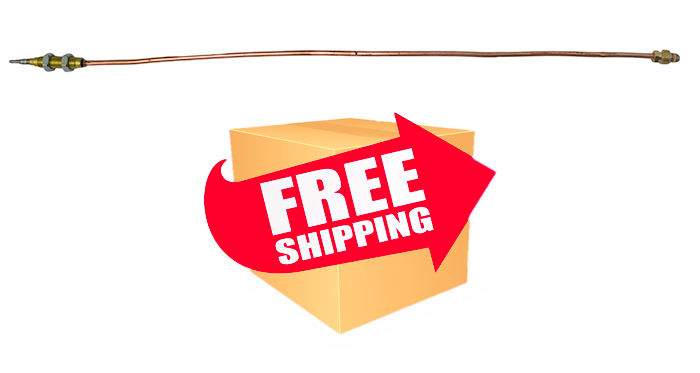

• New thermocouple with threaded tip
• Application for Tall Square Commercial Heater
• Thermocouple wire's are a total of 22" long
• Includes lead that go to the anti-tilt device.

Will fit (ACE) Living Treasure outdoor patio heater model # 4526190
