Glass Tube Heater Parts


Products

Glass Tube Burner for Square Heater 3 Bolt

**Please cross reference with the 6 bolt style to ensure you order the correct part
  • Replacement burner for 4-sided (square) glass tube patio heater with 3 bolts
  • Regulator included
  • Knob
  • Thermocouple and anti-tilt safety devices
  • Diffuser
  • Electric igniter (Battery not included)
  • Mounting hardware not included
  • Reference Part number: HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC, BFH-A

$49.00

Glass Tube Burner for Square Heater 6 Bolt

**Please cross reference with the 3 bolt style to ensure you order the correct part
  • Replacement burner for 4-sided (square) glass tube patio heater with 6 bolts
  • Regulator included
  • Knob
  • Thermocouple and anti-tilt safety devices
  • Diffuser
  • Electric igniter (Battery not included)
  • Mounting hardware not included
  • Reference Part number: 584736, 639564, PH08, HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC, BFH-A

$49.00

Hiland Residential Quartz Glass Tube Replacement 49.5" Tall

  • Tall Glass Tube Patio Heater replacement tube 4"D x 49.5" tall.
  • ***The single tube will also fit models that come with a two-piece tube***
  • Reference Part number: 584736, 639564, PH08, HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC, BFH-A, NG-GT-BRZ
  • Rubber ring not included.
  • PLEASE MEASURE ACCORDINGLY. THIS WILL ALSO FIT SOME 2014 AND NEWER MODEL 3-SIDED HEATERS.

$69.00

Hiland Quartz Glass Tube Replacement (2 Piece)

  • Tall Glass Tube Patio Heater replacement tube 4"D x 49.5" tall. Each piece measures 24.75" in length.
  • Stability conncetor ring not included.
  • Reference Part number: 584736, 639564, PH08, HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC,
  • Rubber ring not included.
  • PLEASE MEASURE ACCORDINGLY.

$67.50

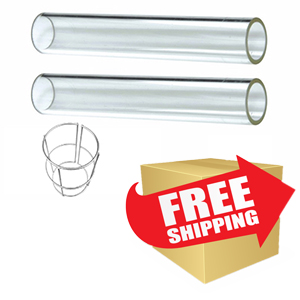

Hiland Quartz Glass Tube Replacement (2 Piece) with Support Ring

  • Tall Glass Tube Patio Heater replacement tube 4"D x 49.5" tall. Each piece measures 24.75" in length.
  • Reference Part number: 584736 PH08-SB, HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC,
  • Rubber ring not included.
  • PLEASE MEASURE ACCORDINGLY.

$78.60

Hiland Commercial Quartz Glass Tube Replacement - 51.5" Tall

Fits the 3-sided commercial tall glass tube patio heater. (Please note, some 3 sided heaters use 4"x 49 1/2" glass)

51.5" tall

Available in two diameters, please choose from the drop down menu: 3 1/2" or 4"

Please measure both length and diameter to ensure the correct part is sent.

$69.00

Center Support Ring for Two-Piece Glass Tube

  • 4" Glass tube support connector.
  • Designed to support 2 piece Quartz Glass Tubes when put together.
  • Stainless steel
  • Reference Part number: 584736, 639564 PH08-SB, HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC.

$13.49

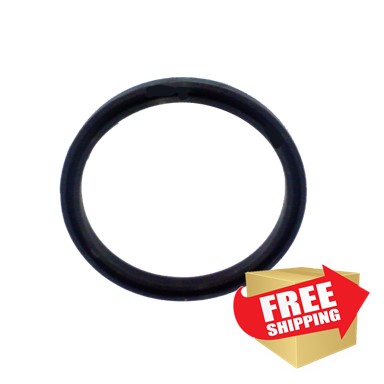

Neoprene Support Ring for Glass Tubes

  • Neoprene 4" Glass Tube rubber ring.
  • Designed to seal and seat lower portion of 4" glass tube at base.
  • 4" Diameter.

$13.49

Hiland Square Glass Tube Heat Shield

  • Tall Glass Tube Patio Heater replacement heat shield.
  • Aluminum with 3 bolt holes.
  • Reference Part number: 584736, 639564, PH08, HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC, BFH,
  • Replacement heat shield for 4-sided (square) glass tube heaters.

$37.40

Hiland Triangle Glass Tube Heat Shield

  • Tall Glass Tube Patio Heater replacement heat shield.
  • Aluminum with 3 bolt holes.
  • Reference Part number: 584736, 639564, PH08, HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC, BFH,
  • Replacement heat shield for 3-sided (triangle) glass tube heaters.

$44.50

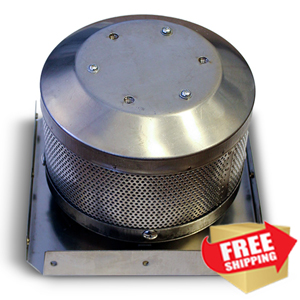

Glass Tube Emitter Screen

  • Emitter screen for triangle (3-sided) and square (4-sided) glass tube heaters.
  • Stainless steel.
  • Inner wind dampener.
  • Assembly required for triangular emitter screen.

$24.75

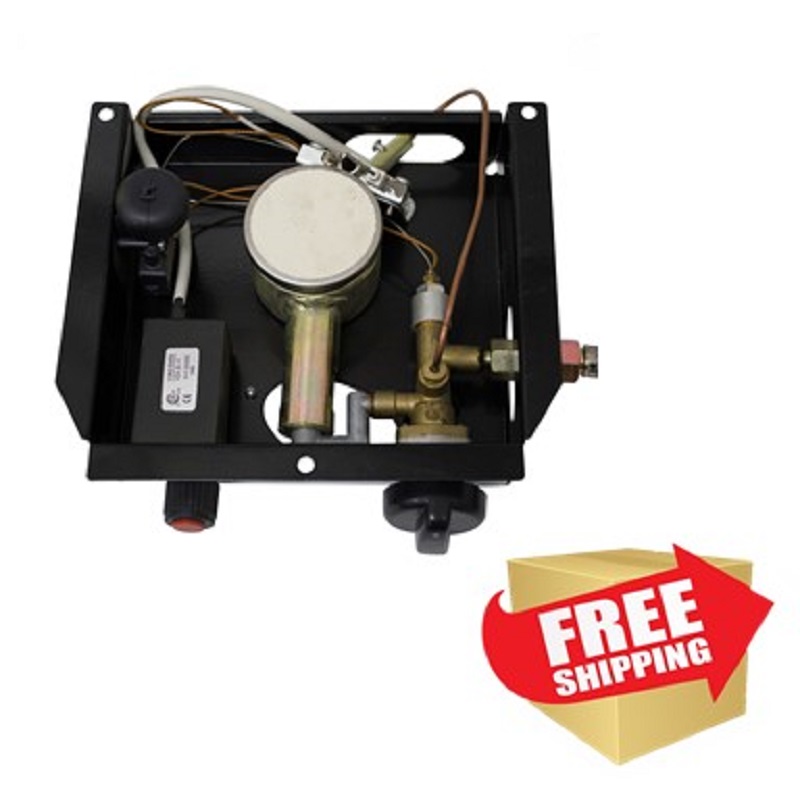

Glass Tube Burner for Triangle Heater 3 Bolt

**Please cross reference with the 6 bolt style to ensure you order the correct part

  • Replacement burner for 3-sided (triangle) glass tube patio heater with 3 bolts
  • Regulator included
  • Knob
  • Thermocouple and anti-tilt safety devices
  • Diffuser
  • Electric igniter (Battery not included)
  • Mounting hardware not included
  • Reference Part number: PH08, HLDS01-CGTHG, HLDS01-CGTSS, HLDS01-CGTPC, BSH-A

$55.00

Glass Tube Burner for Triangle Heater 6 Bolt

**Please cross reference with the 3 bolt style to ensure you order the correct part

  • Replacement burner for 3-sided (triangle) glass tube patio heater with 6 bolts
  • Regulator included
  • Knob
  • Thermocouple and anti-tilt safety devices
  • Diffuser
  • Electric igniter (Battery not included)
  • Mounting hardware not included
  • Reference Part number: PH08, HLDS01-CGTHG, HLDS01-CGTSS, HLDS01-CGTPC, BSH-A

$55.00

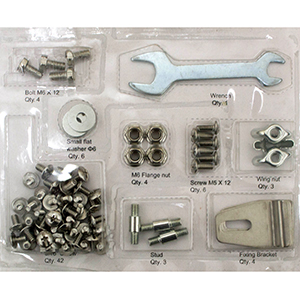

Master Bolt Set for Square Glass Tube Patio Heater GS Models

  • Complete hardware kit for GS models
  • Used to assemble 4-sided (square) tall glass tube patio heater.
  • Reflector shield hardware included.
  • Chrome plated.

***Choose between the GS or WL style.


$13.99

Master Bolt Set for Square Glass Tube Patio Heater WL Models

  • Complete hardware kit for WL models
  • Used to assemble 4-sided (square) tall glass tube patio heater.
  • Reflector shield hardware included.
  • Chrome plated.

***Choose between the GS or WL style.


$13.99

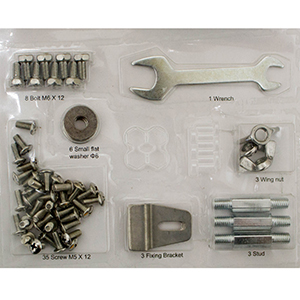

Master Bolt Set for Triangle Glass Tube Patio Heater

  • Complete hardware kit
  • Used to assemble 3-sided (triangle) tall glass tube patio heater.
  • Reflector shield hardware included.
  • Chrome plated.
  • Choose between the GS or WL style.


$13.99

Hiland Regulator (Prior to 2008)

  • Pressure regulator with 14" hose.
  • Regulates your propane for an adequate burn.
  • Used with heaters 2008 and older.
  • Female end has 14" long hose.
  • Female coupler attaches to propane cylinder.
  • 250 PSI and 11 W.C.

Used on most glass tube heaters.

**This regulator and hose will also work on your heater . Actual hose is approximately 3' longer**
https://azpatioheaters.com/product.php?productid=135

$19.99

Pilot Feed Tube for 3 Bolt Hole Glass Tube Burners

  • Pilot feed tube.
  • Connects from the main valve to supply the pilot flame.
  • Orifice included.
  • Used with 3 bolt hole glass tube heater burners.
  • 12" long.


$13.20

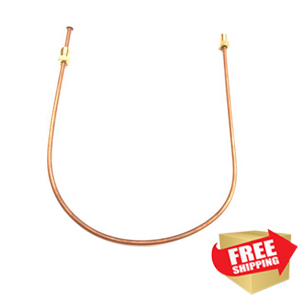

Pilot Feed Tube Hex Orifice

  • Pilot feed tube with hex orifice.
  • Connects from the main valve to supply the pilot flame.
  • Orifice included.
  • Used with single pilot tabletop heaters, some square and triangle glass tube heaters.
  • 14 5/16" long.


$13.20

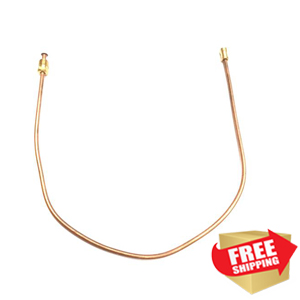

Pilot Feed Tube Round Orifice

  • Pilot feed tube with round orifice.
  • Connects from the main valve to supply the pilot flame.
  • Orifice included.
  • 15.5" long.
  • Used with single pilot tabletop heaters, most square and triangle glass tube heaters.


$13.20

Hiland Thermocouple

  • Tall Heater Thermocouple
  • Sensor activates main control valve after pilot light is lit.
  • Allows the main gas to be released.
  • 2 connectors for attaching to an anti-tilt device.
  • 18 in long.
  • M8 (metric) connection.

**Will also fit Glass Tube Heater sold by Home Depot SS-GT BFC-A-SS

$18.99

Hiland Anti Tilt Switch (2009 and Newer)

  • Mechanical style anti tilt switch.
  • 2009 heaters or newer.
  • For safety, if heater tips or falls over, this device will automatically shut your heater off.
  • Can be used in Garden Treasures heater model 48650, 48221, 328154 and 328157 sold at Lowes in 2010 to 2015.
  • Connected through your thermocouple leads.

*** MOST COMMON APPLICATION***

Will fit models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, HLDS01-models, HLDS032-models, PH08 and PH01 models.

$15.99

Hiland Electric Igniter (Prior to 2010)

  • Electric igniter takes a AA battery.
  • Sends a spark to the pilot for ignition.
  • For heaters made in 2009 or earlier.
  • *** Does not include striker wire***

**Will fit most tall and tabletop glass tube heaters made prior to 2009.

$28.00

Table for Square Glass Tube Heater

  • Hammered steel 4 sided table.
  • Fits square style 89" Heater.
  • 6" deep shelf
  • Available in two finishes - stainless steel or hammered bronze
  • This table will NOT work if you have a cover for this heater.

Fits models: 584736, 639564, PH08, HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC, BFH-A

$38.50

Table for Triangle Glass Tube Heater

  • Two side tables for triangle (3 sided) glass tube heater
  • 6" deep shelf
  • Stainless steel finish
  • Includes two tables and mounting brackets to fasten to heater
  • This table will NOT work if you have a patio heater cover

Fits models: HLDS01-CGTHG, HLDS01-CGTSS, HLDS01-CGTPC, BSH-

$38.50

Glass Tube Side Panels for Square Heaters

  • Replacement side panels for 4-sided (square) glass tube heaters.
  • Three finishes available for square heaters: Stainless steel, hammered bronze, or black.
  • Comes with front tilt-out door panel.

Please choose slatted or circular cutout design to match your current side panels. They are not interchangeable.

Fits models: HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC

$161.70

Glass Tube Side Panels for Triangle Heater

  • Replacement side panels for 3-sided (triangle) glass tube heaters.
  • Three finishes available for triangle heaters: Stainless steel, hammered bronze, or black.
  • Comes with front tilt-out door panel.

Please choose slatted or circular cutout design to match your current side panels. They are not interchangeable.

Fits models: HLDS01-CGTHG, HLDS01-CGTSS, HLDS01-CGTPC, BSH Models.

$95.70

Upper Support Columns for GS Square Glass Tube Heaters

  • Glass tube upper supports for square glass tube heaters.
  • Aluminum.
  • 52" tall.
  • Made for the upper portion of glass tube heaters.
  • Please compare to GS style match your current heater style. The styles are not interchangeable.

$46.20

Upper Support Columns for GS Triangle Glass Tube Heaters

  • Glass tube upper supports for triangle glass tube heaters.
  • Aluminum.
  • 52" tall.
  • Made for the upper portion of glass tube heaters.
  • Please compare with WL style on parts page. These styles are not interchangeable.

$46.20

Upper Support Columns for WL Square Glass Tube Heaters

  • Glass tube upper supports for square glass tube heaters.
  • Eight two-piece supports.
  • Aluminum.
  • 52" tall.
  • Made for the upper portion of glass tube heaters.
  • Please compare to GS style match your current heater style. The styles are not interchangeable.

$46.20
