Tall Patio Heater Parts

• Aluminum reflector shield
• Included: 3 outer panels and 1 center panel.
• Hardware to assemble shield.
• 33" assembled diameter
• Center Piece Mounting: 6 7/8" from hole to hole to attach to the main burner screen.
• 3 holes for mounting.

*** MOST COMMON APPLICATION***

Will fit Garden Treasures heater model 328157 and 48650 sold at Lowes in 2010 to 2015.

Will fit t models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, HLDS01-, PH01 models,

• Solid aluminum reflector shield
• 37" assembled diameter
• Center Piece Mounting: 6 7/8" from hole to hole to attach to the main burner screen.
• 3 holes for mounting.
• Will fit Garden Treasures heater model 328157 and 48650 sold at Lowes in 2010 to 2015. Will fit t models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, HLDS01-, PH01 models,

• 10 1/4" diameter
• 8" Tall
• 3 threaded holes to attach reflector shield. 6 7/8" apart
• Stainless Steel.
• 4 mounting holes for attaching to valve body.
• Hardware not included.

• 10 1/2" diameter
• 8" Tall
• 3 threaded holes to attach reflector shield. 6 7/8" apart
• Stainless Steel.
• 3 mounting holes for attaching to valve body.
• Hardware not included.
• Fits some varieties of tapered style heater.

• 10 3/4" diameter
• 8" Tall
• 3 threaded holes to attach reflector shield. 6 7/8" apart
• Stainless Steel.
• 4 mounting holes for attaching to valve body.
• Hardware not included.

Will fit Home Depot models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, ALSO FITS FIRE SENSE PATIO HEATERS

• Complete burner for tall patio heaters with 2 1/2" Pole .
• Piezo striker.
• Control knob.
• Emmitter Screen 3 post
• Main control valve.
• Pilot assembly.
• Diffuser plate.
• Gas supply line and regulator included for easy application.
• Made for a 2 1/2" pole. (Pole connection hardware included)
• Can be used for 2" pole if you use your old burner coupler to convert.

• Tapered complete burner
• Piezo striker.
• Control knob.
• Emmitter Screen.
• Main control valve.
• Pilot assembly.
• Diffuser plate.
• Gas supply line.
• Made for a 2" pole. (Pole connection hardware included)
• Regulator not included.

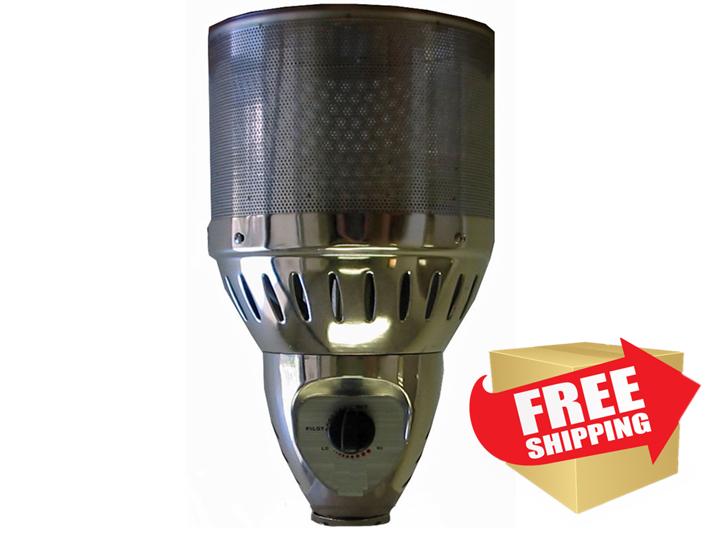

• Natural gas complete burner
• Control knob.
• Emmitter Screen.
• Main control valve.
• Pilot assembly.
• Diffuser plate.
• Natural Gas hose sold separately.
• Made for a 3" pole. (Pole connection hardware included)

• 12' Natural gas hose.
• Flexible high pressure line.
• Quick-disconnect.
• 3/8 thread.

** Note: Quick connect hoses cannot be connected together unless you purchase Male to Male union. This part can be found at all major hardware stores in your area. Part Size: 3/8" Flare x 3/8" MIP.

• Complete regulator and gas feed line
• Gas feed line 5'
• Regulates your propane for an adequate burn.
• Used with heaters 2008 or newer.
• Female end connects directly to main burner.
• Female coupler attaches to propane cylinder.
• 250 PSI and 11 W.C.

*** This hose and regulator has a 1/2" female compression fitting which connects to burner head.

• Complete regulator and gas feed line ( 2008 and newer ) Most Common
• Gas feed line 5'
• Regulates your propane for an adequate burn.
• Used with heaters 2008 or newer.
• Female end connects directly to main burner.
• Female coupler attaches to propane cylinder.
• 250 PSI and 11 W.C.
• Most common regulator for all firepit burners.

*** This hose and regulator has a standard 5/8" Female compression fitting which connects to burner head.

Used on models: HLDS01-, HSS-, Hiland and Primeglo

Will fit Home Depot models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS

Will fit (ACE) Living Treasure outdoor patio heater model # 4526190

• 5' Gas Supply line
• Used with heaters 2008 or newer.
• Female end connects directly to main burner.
• Female coupler attaches to regulator.
• 250 PSI
• Attaches to THP-BURNER and THP-REG 2008

• Pressure regulator with 14" hose.
• Regulates your propane for an adequate burn.
• Used with heaters 2008 and older.
• Female end has 14" long hose.
• Female coupler attaches to propane cylinder.
• 250 PSI and 11 W.C.

Used on most glass tube heaters.

**This regulator and hose will also work on your heater . Actual hose is approximately 3' longer**
https://azpatioheaters.com/product.php?productid=135

• Pressure regulator.
• Regulates your propane for an adequate burn.
• Used with heaters 2008 or newer.
• Male end connects directly to main gas line.
• Female coupler attaches to propane cylinder.
• 250 psi

Will fit Garden Treasures heater model 328157 and 48650 sold at Lowes in 2010-2013.

Will fit Home Depot models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS

• New Pilot assembly comes with thermocouple, venturi tube, igniter stem, and igniter wire.
• Application for Tall Square Commercial Heater
• Igniter wire and thermocouple wire's are a total of 22" long
• Pilot feed tube is not included.

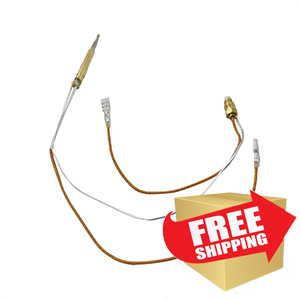

• Tall Heater Thermocouple
• Sensor activates main control valve after pilot light is lit.
• Allows the main gas to be released.
• 2 connectors for attaching to an anti-tilt device.
• 18 in long.
• M8 (metric) connection.

**Will also fit Glass Tube Heater sold by Home Depot SS-GT BFC-A-SS

• Pilot feed tube.
• Connects from the main valve to supply the pilot flame.
• Orifice included.
• 4" long
• Hex head orifice

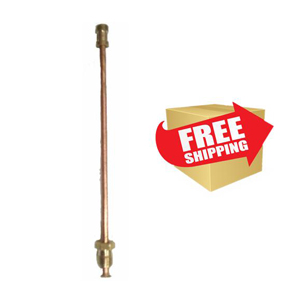

• Pilot feed tube.
• Connects from the main valve to supply the pilot flame.
• Orifice included.
• 4" long
• Round Orifice

• Main control valve.
• Pilot and variable control settings.
• Please see enlarged detail pictures to match your current model and style.

**Manufacturer part number: C008 Manufacturer name: NAILI

• Main control valve for 2014 and newer heaters.
• Pilot and variable control settings.
• Please see enlarged detail pictures to match your current model and style.

**Manufacturer part number: AH902001 Manufacturer name: Laite

• Main control valve female outlet
• Pilot and variable control settings.
• Please see enlarged detail pictures to match your current model and style.

**Manufacturer part number: H702D01 Manufacturer name: Laite

• Natural Gas main control valve
• 2 position settings. 0.5PSI
• Please see enlarged detail pictures to match your current model and style.
• Integrated igniter.

**Manufacturer part number: B0902C01 Manufacturer name: Laite

** WARNING **

*****CANNOT BE USED TO CHANGE A PROPANE HEATER TO NATURAL GAS

• Mechanical style anti tilt switch.
• 2009 heaters or newer.
• For safety, if heater tips or falls over, this device will automatically shut your heater off.
• Can be used in Garden Treasures heater model 48650, 48221, 328154 and 328157 sold at Lowes in 2010 to 2015.
• Connected through your thermocouple leads.

*** MOST COMMON APPLICATION***

Will fit models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, HLDS01-models, HLDS032-models, PH08 and PH01 models.

• Used for 2008 and earlier heaters.
• Mercury filled anti-tilt device.
• For safety, if heater tips or falls over, this device will automatically shut your heater off.
• Connected through your thermocouple leads.

• Electric igniter takes a AAA battery.
• Sends a spark to the pilot for ignition.
• For 2010 and newer heaters.
  *** Does not include striker wire***

Will fit Garden Treasures heater model 328157 or 48650 sold at Lowes in 2010 to 2015.

• Electric igniter takes a AA battery.
• Sends a spark to the pilot for ignition.
• For heaters made in 2009 or earlier.
• *** Does not include striker wire***

**Will fit most tall and tabletop glass tube heaters made prior to 2009.

• Connects to piezoelectric striker switch.
• Conduit for a spark to the tip of the igniter from piezoelectric switch.
• 17" long.

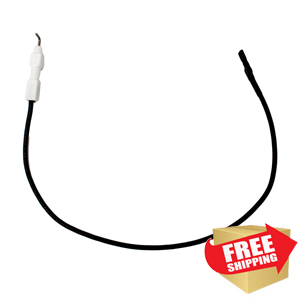

• Connects to piezoelectric striker switch.
• Conduit for a spark to the tip of the igniter from piezoelectric switch.
• 21" long.

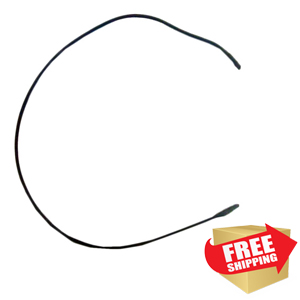

• Connects to electric or piezo striker switch.
• Sends a spark to the tip of the igniter from piezoelectric switch.
• 17" long.
• Striker wire only

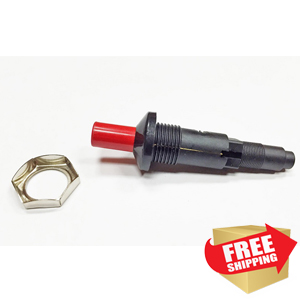

• Manual piezoelectric striker switch.
• Sends a spark through the igniter wire to the igniter for ignition of the pilot flame.
• ***Does not include igniter wire***
