Tabletop Heater Parts

• Tabletop Heater Thermocouple
• Sensor activates main control valve after pilot light is lit.
• Allows the main gas to be released.
• 2 connectors for attaching to an anti-tilt device.
• 22 in long.
• M8 (metric) connection

• Portable adapter hose.
• 10' long.
• Adapts a 20lb propane tank to a 1lb connection.
• Extends the life of your tabletop heater.
• Also works for camping stoves and portable appliances that require a 1lb propane tank.

• Portable adapter hose.
• 5' long.
• Adapts a 20lb propane tank to a 1lb connection.
• Extends the life of your tabletop heater.
• Also works for camping stoves and portable flames that require a 1lb propane tank.

• Neoprene 2.25" Glass Tube rubber ring for table top heaters.
• Designed to seal and seat lower portion of 2.25" glass tube at base.
• 2.25" Diameter.

• Metal heat reflector shield
• Included: 1 piece.
• 21" assembled diameter
• Center Piece Mounting: 2 3/4" from hole to hole to attach to the main burner screen.
• 3 holes for mounting.

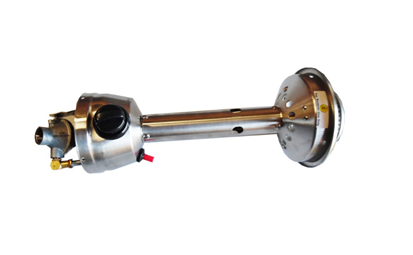

• Tabletop complete burner.
• 11,000 BTU's, variable control
• Piezo striker.
• Control knob.
• Main control valve.
• Pilot assembly.
• Diffuser plate.
• Regulator included.
• Available in a variety of colors to match your heater.

• 6" diameter.
• 3 Holes on top to connect reflector shield.
• 4 holes on the base to attach to the complete valve assembly.
• Hardware not included.

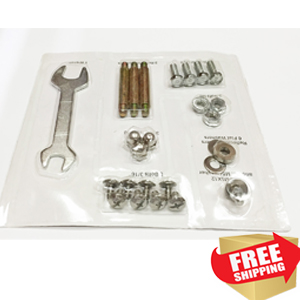

• Complete hardware kit
• Used to assemble table top patio heater.
• Reflector shield hardware included.
• Hardware is all chrome-plated.

• Tabletop Regulator.
• Controls flow of propane through the patio heater.
• Does not include mounting hardware or stem to attach to plumbing.

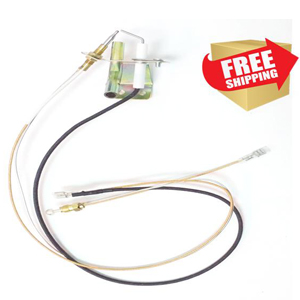

• New Pilot assembly is comprised of a thermocouple, venturi tube, igniter stem, and igniter wire.
• For all table top heaters 2014 and newer.
• Igniter wire and thermocouple wires are a total of 22" long

• Pilot feed tube with round orifice.
• Connects from the main valve to supply the pilot flame.
• Orifice included.
• 15.5" long.
• Used with single pilot tabletop heaters, most square and triangle glass tube heaters.

• Pilot feed tube with hex orifice.
• Connects from the main valve to supply the pilot flame.
• Orifice included.
• Used with single pilot tabletop heaters, some square and triangle glass tube heaters.
• 14 5/16" long.

• Used for 2008 and earlier heaters.
• Mercury filled anti-tilt device.
• For safety, if heater tips or falls over, this device will automatically shut your heater off.
• Connected through your thermocouple leads.

Ensure the safety of your outdoor heater with the Hiland Anti Tilt Switch designed for heaters manufactured in 2009 or newer. Safety is paramount, and this switch is an essential component to safeguard against accidents.

This mechanical-style anti-tilt switch is compatible with various heater models, including HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, HLDS01-models, HLDS032-models, PH08, and PH01 models. It serves as a critical safety feature: if your heater tips or falls over, the device will automatically shut off your heater, preventing potential hazards.

For added convenience, this switch can also be used with Garden Treasures heater models 48650, 48221, 328154, and 328157 sold at Lowes in 2010 to 2015. It's easily connected through your thermocouple leads, offering you peace of mind and enhanced safety for your outdoor heating experience.

*** MOST COMMON APPLICATION***

Will fit models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, HLDS01-models, HLDS032-models, PH08 and PH01 models.

• Mechanical style anti tilt switch.
• 2009 heaters or newer.
• For safety, if heater tips or falls over, this device will automatically shut your heater off.
• Can be used in Garden Treasures heater model 48650, 48221, 328154 and 328157 sold at Lowes in 2010 to 2015.
• Connected through your thermocouple leads.

• Manual piezoelectric striker switch and igniter wire.
• Mounting nut included.
• Sends a spark to the tip of the igniter wire for ignition of the pilot flame.
• Igniter wire is a total of 27" long

Enhance the ignition system of your equipment with the Hiland Igniter Wire with Striker. This wire conveniently connects to the piezoelectric striker switch, creating a reliable conduit for a spark to travel from the switch to the igniter's tip. With a length of 17", this wire ensures a seamless and efficient ignition process. Elevate the reliability of your equipment's ignition with this dependable and practical igniter wire, ensuring optimal performance and hassle-free operation.

• Connects to piezoelectric striker switch.
• Conduit for a spark to the tip of the igniter from piezoelectric switch.
• 17" long.

Elevate your ignition process with the Hiland Piezoelectric Striker Switch. This manual switch is designed for piezoelectric ignition, sending a spark through the igniter wire to ignite the pilot flame. The package includes a retaining nut for secure installation. Please note that the igniter wire is not included with this switch. Enhance your ignition system with this practical and reliable piezoelectric striker switch, ensuring efficient and hassle-free ignition for your equipment.

• Manual piezoelectric striker switch.
• Sends a spark through the igniter wire to the igniter for ignition of the pilot flame.
• Includes retaining nut
• ***Does not include igniter wire***

Upgrade your patio heater's control experience with the Hiland Plastic Control Knob. This variable control knob, made from durable black plastic, provides easy adjustments for your heating settings. Featuring a rotation indicator, it ensures clear visibility of your chosen setting. Designed to fit both tall and tabletop patio heaters, this knob offers versatility and convenience for your outdoor heating needs. Elevate your control experience with this user-friendly plastic control knob, adding both functionality and style to your patio heater setup.

• Variable control knob.
• Black plastic.
• Rotation indicator.
• Fits tall and tabletop patio heaters.

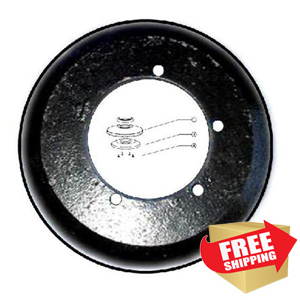

• Weight plate for tabletop heaters.
• 4 mounting holes to attach inside base.
• Hardware not included.
• 5 lbs, cast iron.

Table Top Glass Tube 2 3/4" X 16"

• Glass tube replacement for tabletop glass heaters.
• High density quartz glass.
• Used on models HLDS032-GTTHG, HLDS032-GTTSS, BFH models sold at Sams Club and Costco.

******Please select your tube's measurements from the drop down menu******

• Main burner unit.
• 9500 BTU's
• Variable control knob.
• Thermocouple and anti-tilt safety devices.
• Regularor
• Used on models HLDS032-GTTHG, HLDS032-GTTSS, BFH models sold at Sams Club and Costco.

• Stainless steel emitter screen.
• 4" D x 3"H
• Used on models HLDS032-GTTHG, HLDS032-GTTSS, BFH models sold at Sams Club and Costco.

• Aluminum heat shield.
• 11x11" square.
• 3 mounting holes.
• Used on models HLDS032-GTTHG, HLDS032-GTTSS, BFH models sold at Sams Club and Costco.

• Pilot feed tube for Tabletop Heaters or Square Commercial Heaters.
• Connects from the main valve to supply the pilot flame assembly.
• Orifice included.
• 15.5" long.

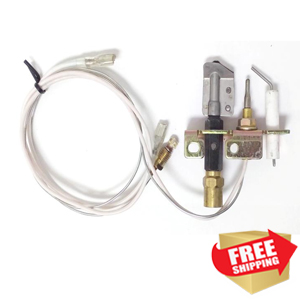

• New Pilot assembly is comprised of a thermocouple, venturi tube, igniter stem, and igniter wire.
• For all table top heaters 2009-2013.
• Igniter wire and thermocouple wires are a total of 22" long.

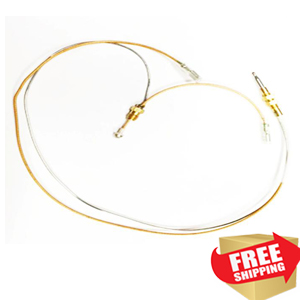

• New thermocouple with threaded tip(mounting nuts included)
• Application for Tabletop Heater
• Thermocouple wires are a total of 22" long

Will fit (ACE) Living Treasure outdoor patio heater model # 4526190

Product Features

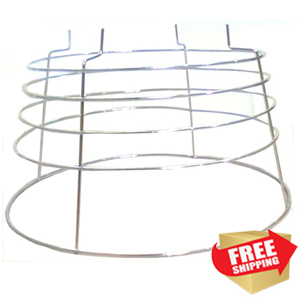

• Aluminum burner cage.
• This is a safety feature to protect from accidently touching the hot table top burner screen.
