HARDWARE NOT INCLUDED

• Complete burner for tall patio heaters with 2 1/2" Pole
• Piezo striker
• Control knob
• Emmitter Screen 3 post

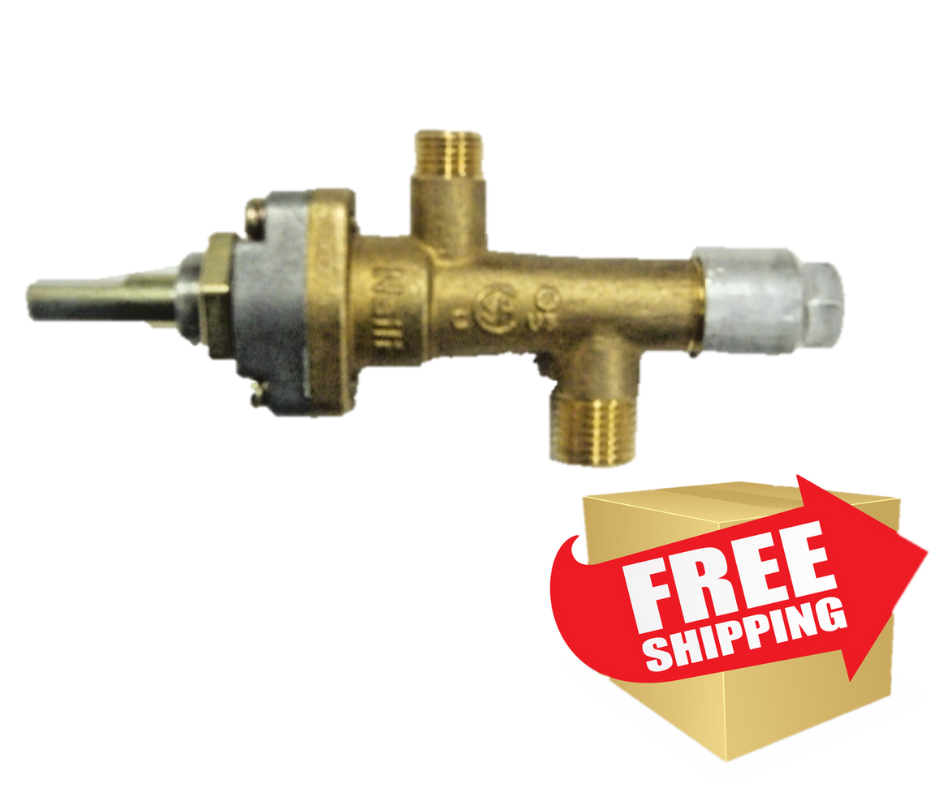

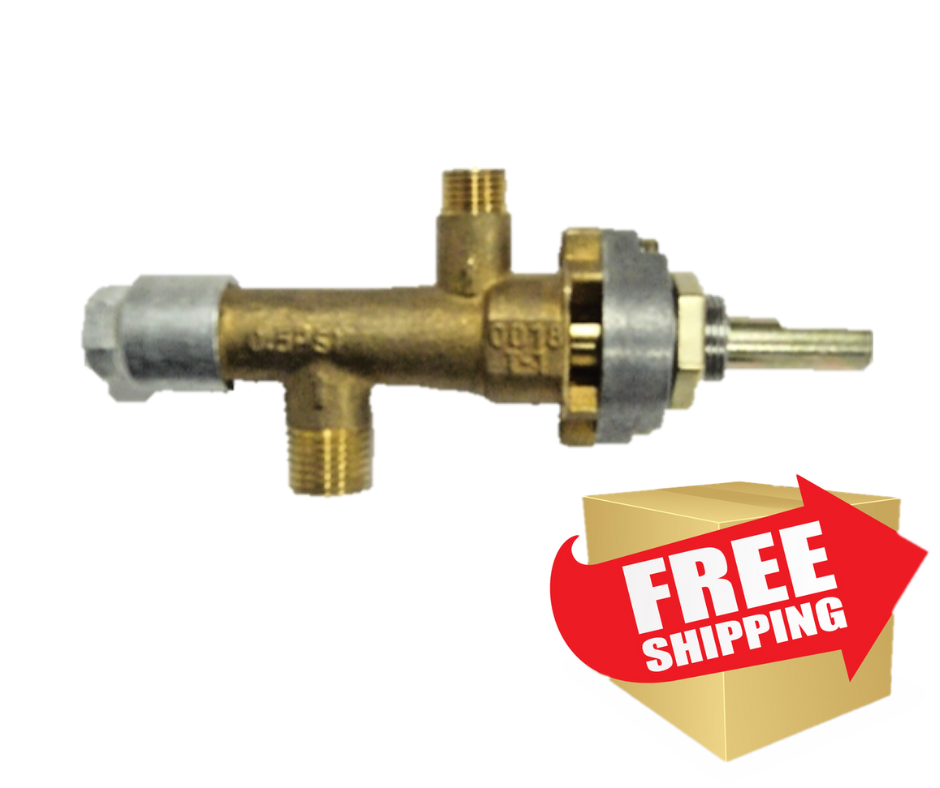

• Main control valve
• Pilot assembly
• Diffuser plate
• Gas supply line and regulator included for easy application.
• Made for a 2 1/2" pole. (Pole connection hardware included)
• Can be used for 2" pole if you use your old burner coupler to convert.

• 10 3/4" diameter
• 8" Tall
• 3 threaded holes to attach reflector shield. 6 7/8" apart
• Stainless Steel.
• 4 mounting holes for attaching to valve body.
• Hardware not included.

Will fit Home Depot models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, ALSO FITS FIRE SENSE PATIO HEATERS

• Aluminum reflector shield
• Included: 3 outer panels and 1 center panel.
• Hardware to assemble shield.
• 32" assembled diameter
• Center Piece Mounting: 6 7/8" from hole to hole to attach to the main burner screen.
• 3 holes for mounting.

*** MOST COMMON APPLICATION***

Will fit Garden Treasures heater model 328157 and 48650 sold at Lowes in 2010 to 2015.

Will fit t models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, HLDS01-, PH01 models,

• Pilot feed tube.
• Connects from the main valve to supply the pilot flame.
• Orifice included.
• 4" long
• Round Orifice

• Tall Heater Thermocouple
• Sensor activates main control valve after pilot light is lit.
• Allows the main gas to be released.
• 2 connectors for attaching to an anti-tilt device.
• 18 in long.
• M8 (metric) connection.

**Will also fit Glass Tube Heater sold by Home Depot SS-GT BFC-A-SS

• Variable control knob.
• Black plastic.
• Rotation indicator.
• Fits tall and tabletop patio heaters.

• Mechanical style anti tilt switch.
• 2009 heaters or newer.
• For safety, if heater tips or falls over, this device will automatically shut your heater off.
• Can be used in Garden Treasures heater model 48650, 48221, 328154 and 328157 sold at Lowes in 2010 to 2015.
• Connected through your thermocouple leads.

*** MOST COMMON APPLICATION***

Will fit models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, HLDS01-models, HLDS032-models, PH08 and PH01 models.

• Tall Glass Tube Patio Heater replacement tube 4"D x 49.5" tall.
• ***The single tube will also fit models that come with a two-piece tube***
• Reference Part number: 584736, 639564, PH08, HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC, BFH-A, NG-GT-BRZ
• Rubber ring not included.
• PLEASE MEASURE ACCORDINGLY. THIS WILL ALSO FIT SOME 2014 AND NEWER MODEL 3-SIDED HEATERS.

• Tall Glass Tube Patio Heater replacement heat shield.
• Aluminum with 3 bolt holes.
• Reference Part number: 584736, 639564, PH08, HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC, BFH,
• Replacement heat shield for 4-sided (square) glass tube heaters.

• Complete regulator and gas feed line ( 2008 and newer ) Most Common
• Gas feed line 5'
• Regulates your propane for an adequate burn.
• Used with heaters 2008 or newer.
• Female end connects directly to main burner.
• Female coupler attaches to propane cylinder.
• 250 PSI and 11 W.C.
• Most common regulator for all firepit burners.

*** This hose and regulator has a standard 5/8" Female compression fitting which connects to burner head.

Used on models: HLDS01-, HSS-, Hiland and Primeglo

Will fit Home Depot models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS

Will fit (ACE) Living Treasure outdoor patio heater model # 4526190

• Solid aluminum reflector shield
• 37" assembled diameter
• Center Piece Mounting: 6 7/8" from hole to hole to attach to the main burner screen.
• 3 holes for mounting.
• Will fit Garden Treasures heater model 328157 and 48650 sold at Lowes in 2010 to 2015. Will fit t models: HSS-A-SS, HSS-A-GH, GS4400BK, GS4400GD, GS4400SS, HLDS01-, PH01 models,

• Propane use only
• Flow Capacity: 0 - 50,000 BTU/Hr

• Inlet Pressure: 25 - 250 PSIG

• Outlet Pressure: 11"W.C.

• Certification: CSA


• Tall Glass Tube Patio Heater replacement tube 4"D x 49.5" tall. Each piece measures 24.75" in length.
• Stability conncetor ring not included.
• Reference Part number: 584736, 639564, PH08, HLDS01-GTHG, HLDS01-GTSS, HLDS01-GTPC,
• Rubber ring not included.
• PLEASE MEASURE ACCORDINGLY.

• Electric igniter takes a AAA battery.
• Sends a spark to the pilot for ignition.
• For 2010 and newer heaters.
  *** Does not include striker wire***

Will fit Garden Treasures heater model 328157 or 48650 sold at Lowes in 2010 to 2015.

• Electric igniter takes a AA battery.
• Sends a spark to the pilot for ignition.
• For heaters made in 2009 or earlier.
• *** Does not include striker wire***

**Will fit most tall and tabletop glass tube heaters made prior to 2009.

• Complete fire pit burner.
• 41,000 BTUs
• Integrated ignition.
• Stainless steel.
• Plastic control knob.
• Thermocouple safety device.
• 19" x 19" x 7"
• Regulator included.
• Fits models GS-F-PC, GS-F-PCSS and F-1108-FPT.

23 3/4 Square Heat Deflector

13" Tall

Handle for Easy Grip

Collapsible Legs

Freestanding and Portable

Can be used as a burner cover

Works well with round and rectangular burners as well!

• Strong heavy duty 210D fabric.
• Double insulated waterproof and weather resistant.
• 87" tall. 33" reflector cover.
• Heavy duty zipper for easy opening and installation.

• Strong heavy duty 210D fabric.
• Double insulated waterproof and weather resistant.
• 92" tall. 21" square.
• Heavy duty zipper for easy opening and installation.
• Fits the HLDS01-GTSS and HLDS01-GTHG square glass tube heaters.

Fits Square Glass tube Heaters Only!

• 610D Vented Fabric with Drawstring
• Zipper for easy opening and installation
• Waterproof and Weather Resistant
• Triple Insulated
• TPU Membrane, Inner 120g Jersey
• Dims: 93" x 20" x 20"
